Transparent Simulation Training teaching model teaching elevator equipment; transparent elevator simulation teaching demonstration plant; double-transparent elevator Teaching Training Simulation teaching equipment

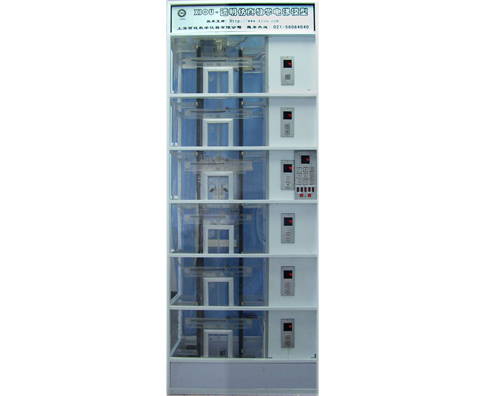

Transparent simulation teaching Elevator
I. Overview
Simulation transparent elevator is in line with the teaching colleges, technical schools, vocational schools, employment training centers, elevator maintenance property management departments, and other relevant professional and industrial automation elevator professional courses laboratory demonstration so that more people can better understand Elevator , the use of elevators, escalators training more professionals in the industry adapt to the development needs of the lift, I Following in-depth exploration and research company, carefully designed.
I. Overview
Simulation transparent elevator is in line with the teaching colleges, technical schools, vocational schools, employment training centers, elevator maintenance property management departments, and other relevant professional and industrial automation elevator professional courses laboratory demonstration so that more people can better understand Elevator , the use of elevators, escalators training more professionals in the industry adapt to the development needs of the lift, I Following in-depth exploration and research company, carefully designed.
The elevator is based on the movements of the most common type elevator structure, using transparent organic materials, its structure is identical with the actual elevator, and have a real lift almost all functions. In order to facilitate the teaching, most of the lift components are made from organic materials using transparent, making clear the internal structure of the lift at the same time, the elevator is running, and every movement is very clear, practical and hands operation can be repeated. Students can very intuitive, thorough understanding of the structure and its master Elevator action principle to effective and efficient. Settlement of the past Elevator Teaching simple theory actual teaching methods or visit the lift brought about by insecurity, unable to fully understand its internal structure and operation of process and various other practical issues.
The elevator electrical control system uses programmable logic controller (PLC) to achieve logic Intelligent Control, AC frequency converter (VVVF) driver, the hardware configuration and functions of the composition of the actual lift completely the same. With automatic-layer, automatic door closed, Shun call to respond Cabin and outside staircase signal, straight ahead, the protection of safe operation of elevators and escalators exigency stop, slow, slow, lighting, fans, and other functions. And have a reliable performance, operations have been stable, simple operation, low energy consumption and ease of learning, and other characteristics.
In addition, the transparency of the software and hardware simulation teaching elevator adopt open architecture, the institutions can also use this set of devices secondary development research. Such as:
1, Elevator Group Control (unified control of the multi-tied on the lift);
2, parallel control Elevator (2-3 Taiwan elevator control lines parallel, logic control, the sharing of the station call button);
3, set the election control elevators;
4, signal control elevator, and so on.
Second, the basic structure of the lift:
1, Room: including Tractor, speed limiter, electromagnetic brake;
The elevator electrical control system uses programmable logic controller (PLC) to achieve logic Intelligent Control, AC frequency converter (VVVF) driver, the hardware configuration and functions of the composition of the actual lift completely the same. With automatic-layer, automatic door closed, Shun call to respond Cabin and outside staircase signal, straight ahead, the protection of safe operation of elevators and escalators exigency stop, slow, slow, lighting, fans, and other functions. And have a reliable performance, operations have been stable, simple operation, low energy consumption and ease of learning, and other characteristics.
In addition, the transparency of the software and hardware simulation teaching elevator adopt open architecture, the institutions can also use this set of devices secondary development research. Such as:
1, Elevator Group Control (unified control of the multi-tied on the lift);
2, parallel control Elevator (2-3 Taiwan elevator control lines parallel, logic control, the sharing of the station call button);
3, set the election control elevators;
4, signal control elevator, and so on.
Second, the basic structure of the lift:
1, Room: including Tractor, speed limiter, electromagnetic brake;
2, the control cabinet parts: the power supply, power supply control, PLC programmable logic controller, inverter, wiring boards and other equipment;
3, Wells Road: including rail, weighing devices, buffers, speed limiter rope tensioning devices, limit switches, sensors - layer, the accompanying cables;
4, staircase doors: including doors, call button booths, floor display devices, and so on;
5, Car parts: including Cabin, security clamp I. boots, automatic gate openers, - layer devices, manipulating hand, Cabin in guiding lights, Cabin lighting ...
透明电梯实训组合电梯模型;双联透明仿真教学电梯教学实训设备
SHANGHAI KERONG TEACHING APPARATUS CO.,LTD
English Tel: +86.21-56301098 Fax: +86.21-66613899
QQ:
MSN:
shkr123@hotmail.com
Website: www.shkr.com Email: kerong@shkr.com
3, Wells Road: including rail, weighing devices, buffers, speed limiter rope tensioning devices, limit switches, sensors - layer, the accompanying cables;
4, staircase doors: including doors, call button booths, floor display devices, and so on;
5, Car parts: including Cabin, security clamp I. boots, automatic gate openers, - layer devices, manipulating hand, Cabin in guiding lights, Cabin lighting ...
Third, the basic functions of the lift
A. speeding security protection system
When the elevator when the accident occurred, Cabin fell speeding or high-speed (such as broken rope, pulley from Jiaoding, Dray Machine Worm Gear a malfunction, such as high speed motor dropped reasons). At this time, speed limiter will be emergency brake, through safety cables and linkage mechanism, promote security clamp movement, in the Guide to Car cards and not on the whereabouts.
B. Cabin, reuse spring buffer devices
Buffer is the ultimate location of the lift safety device, when the elevator because of failure, resulting Cabin or at the end of the weight squatting or hoisting pm (Limit Switch Failure Protection), Cabin or heavy impact on the spring buffers, the lift from the energy absorbing buffer so that Cabin or deceleration until the cessation of heavy security.
C. doors safety protection device in contravention of board
In the Cabin on the edge of the door, with activities inconsistent with the safety board. When the doors closed in the process of security and inconsistent with plate with passengers or obstacles when dealing with the security breach of the plate-connected, touch on the door installed in Cabin Fretting switch moves to re-open the doors to avoid accidents .
D., the lower limit of Switches:
In Elevator Shaft Road, the lower end of the install the switches, and installed in the upper and lower limit switches within than from the box intended to protect not exceed this range, or if in excess of the minimum level of the ceiling, the motor automatically stop, and not, keep up, and under the limit switch distinction in this switch will not power off.
E. automatic door closure device
The doors of the elevator opened and customs, palanquin through the doors installed in the gate blade to achieve. Each of the doors are equipped with a lock. Layer doors closed, the mechanical lock the door hook meshing, the lift will start running at this time.
F. layer door chain Switches:
When all of the doors were closed, the elevator can take-off and landing, if a layer of the layer doors open, the elevator is not running.
G. terminal security protection system Limit Switch
Elevator Shaft Road at the top and bottom with terminal Limit Switch. When the elevator went out of control due to failure, Cabin in hoisting or squatting at the end of terminal Limit Switch moves to cut off a warning signal and control circuits, Cabin stop running.
Fourth, the main technical parameters
1, and its dimensions: length x width × high (mm) 900 × 600 × 2400
2, Net Weight: 280kg
3, payload: 5kg
4, control mode: PLC control (PLC requirements: relay output, input and output points at least 64 percent) use the Mitsubishi brand PLC:
5, speed control mode: AC Frequency Control
6, structural forms: six six points
7, Dray Machine: speed ratio 15:1
Modulus: 1.5 (Worm Reducer)
8, the drive motor: Model: JW524 voltage: AC220V 50Hz
Power: 0.12 KW
Speed: 1,400 rpm
V. Training Project
1, Car start and stop, move the Control Training;
2, Car-layer control Training;
3, Car doors open, and controlling the Training;
4, terminal spacing Protection Device Training;
5, speed protection device Training;
6, Signal Indicator System Training;
7, Cabin Lighting Control Training;
8, elevator control system Training;
9, Elevator Control Training Program;
10, elevators running and debugging procedures Training;
透明仿真教学电梯教学模型实训设备;透明仿真电梯教学演示装置;双联透明仿真教学电梯教学实训设备
Training portfolio transparent elevator lift model; double-transparent elevator Teaching Training Simulation teaching equipment
A. speeding security protection system
When the elevator when the accident occurred, Cabin fell speeding or high-speed (such as broken rope, pulley from Jiaoding, Dray Machine Worm Gear a malfunction, such as high speed motor dropped reasons). At this time, speed limiter will be emergency brake, through safety cables and linkage mechanism, promote security clamp movement, in the Guide to Car cards and not on the whereabouts.
B. Cabin, reuse spring buffer devices
Buffer is the ultimate location of the lift safety device, when the elevator because of failure, resulting Cabin or at the end of the weight squatting or hoisting pm (Limit Switch Failure Protection), Cabin or heavy impact on the spring buffers, the lift from the energy absorbing buffer so that Cabin or deceleration until the cessation of heavy security.
C. doors safety protection device in contravention of board
In the Cabin on the edge of the door, with activities inconsistent with the safety board. When the doors closed in the process of security and inconsistent with plate with passengers or obstacles when dealing with the security breach of the plate-connected, touch on the door installed in Cabin Fretting switch moves to re-open the doors to avoid accidents .
D., the lower limit of Switches:
In Elevator Shaft Road, the lower end of the install the switches, and installed in the upper and lower limit switches within than from the box intended to protect not exceed this range, or if in excess of the minimum level of the ceiling, the motor automatically stop, and not, keep up, and under the limit switch distinction in this switch will not power off.
E. automatic door closure device
The doors of the elevator opened and customs, palanquin through the doors installed in the gate blade to achieve. Each of the doors are equipped with a lock. Layer doors closed, the mechanical lock the door hook meshing, the lift will start running at this time.
F. layer door chain Switches:
When all of the doors were closed, the elevator can take-off and landing, if a layer of the layer doors open, the elevator is not running.
G. terminal security protection system Limit Switch
Elevator Shaft Road at the top and bottom with terminal Limit Switch. When the elevator went out of control due to failure, Cabin in hoisting or squatting at the end of terminal Limit Switch moves to cut off a warning signal and control circuits, Cabin stop running.
Fourth, the main technical parameters
1, and its dimensions: length x width × high (mm) 900 × 600 × 2400
2, Net Weight: 280kg
3, payload: 5kg
4, control mode: PLC control (PLC requirements: relay output, input and output points at least 64 percent) use the Mitsubishi brand PLC:
5, speed control mode: AC Frequency Control
6, structural forms: six six points
7, Dray Machine: speed ratio 15:1
Modulus: 1.5 (Worm Reducer)
8, the drive motor: Model: JW524 voltage: AC220V 50Hz
Power: 0.12 KW
Speed: 1,400 rpm
V. Training Project
1, Car start and stop, move the Control Training;
2, Car-layer control Training;
3, Car doors open, and controlling the Training;
4, terminal spacing Protection Device Training;
5, speed protection device Training;
6, Signal Indicator System Training;
7, Cabin Lighting Control Training;
8, elevator control system Training;
9, Elevator Control Training Program;
10, elevators running and debugging procedures Training;
透明仿真教学电梯教学模型实训设备;透明仿真电梯教学演示装置;双联透明仿真教学电梯教学实训设备
Training portfolio transparent elevator lift model; double-transparent elevator Teaching Training Simulation teaching equipment
Training transparent elevator lift model portfolio
Training lift this series model portfolio vast number of institutions in order to meet the electrical and industrial automation Professional Training requirements. As a control object model, using the combination of structural form, a functional and practical, reliable performance advantages. To meet the different PLC controller, the MCU control system, control system of control ARM demand.
Training combination lift model is a combination of powerful functions will be free to lift agencies, hardware circuit combined 2-7 the lift control object. Even, the two elevators portfolio dual elevator, and three more group control elevator. Let the students have a from simple to complex learning training process. Teachers and students of the institutions and meet the requirements for controlling the software programming. As a control object, this model provided the lift the standard wiring ports, students can operate according to the drawings, free exploration experiment. Training lift model portfolio of hardware basic input points up 24 points, the basic point output up to 30 points. Input and output points for the points of correspondence between the logic of programming provided a vast space. Cabin by the positioning of the integration photoelectric encoder technology, a positioning precision, simple structure, and strong principles.
Training lift model portfolio from the circuit to both agencies, from hardware to software, have adopted a simple design concepts, practical and reliable principle.
Training combination of this series for the seventh floor of the lift model. With different controller, automatic elevators can be achieved-layer, automatically switching doors, Shun palanquin to respond to calls inside and outside staircase signals, and other basic functions. Its adoption of a DC motor Cabin deceleration of Dray Drive, and Cabin door switch. With the limit in place to protect and hardware circuit to prevent procedural mistakes of the damaged motor and its agencies. And job to be the speed DC motor control system to meet different needs.
According to the different controller, I introduced:
Panasonic FP-X L60 seventh floor elevator model portfolio Training
The main technical parameters:
1, and its dimensions: 800 (L) x 600 (W) x 800 (H)
2, net weight:
3, Controller Model: Panasonic FP-X L60 PLC controller (60 points)
4, drive motor: DC: 12V slowdown Motor
Mitsubishi FX1N-60 +8 E Training seventh floor elevator model portfolio
The main technical parameters:
1, and its dimensions: 800 (L) x 600 (W) x 800 (H)
2, net weight:
3, Controller Model: Mitsubishi FX1N-60 PLC controller (60 points) and 8 output point spread modules
4, drive motor: DC: 12V slowdown Motor
Mitsubishi FX1N-60 five-story elevator model portfolio Training
The main technical parameters:
1, and its dimensions: 800 (L) x 600 (W) x 800 (H)
2, net weight:
3, Controller Model: Mitsubishi FX1N-60 PLC controller (60 points)
4, drive motor: DC: 12V slowdown Motor
Training lift this series model portfolio vast number of institutions in order to meet the electrical and industrial automation Professional Training requirements. As a control object model, using the combination of structural form, a functional and practical, reliable performance advantages. To meet the different PLC controller, the MCU control system, control system of control ARM demand.
Training combination lift model is a combination of powerful functions will be free to lift agencies, hardware circuit combined 2-7 the lift control object. Even, the two elevators portfolio dual elevator, and three more group control elevator. Let the students have a from simple to complex learning training process. Teachers and students of the institutions and meet the requirements for controlling the software programming. As a control object, this model provided the lift the standard wiring ports, students can operate according to the drawings, free exploration experiment. Training lift model portfolio of hardware basic input points up 24 points, the basic point output up to 30 points. Input and output points for the points of correspondence between the logic of programming provided a vast space. Cabin by the positioning of the integration photoelectric encoder technology, a positioning precision, simple structure, and strong principles.
Training lift model portfolio from the circuit to both agencies, from hardware to software, have adopted a simple design concepts, practical and reliable principle.
Training combination of this series for the seventh floor of the lift model. With different controller, automatic elevators can be achieved-layer, automatically switching doors, Shun palanquin to respond to calls inside and outside staircase signals, and other basic functions. Its adoption of a DC motor Cabin deceleration of Dray Drive, and Cabin door switch. With the limit in place to protect and hardware circuit to prevent procedural mistakes of the damaged motor and its agencies. And job to be the speed DC motor control system to meet different needs.
According to the different controller, I introduced:
Panasonic FP-X L60 seventh floor elevator model portfolio Training
The main technical parameters:
1, and its dimensions: 800 (L) x 600 (W) x 800 (H)
2, net weight:
3, Controller Model: Panasonic FP-X L60 PLC controller (60 points)
4, drive motor: DC: 12V slowdown Motor
Mitsubishi FX1N-60 +8 E Training seventh floor elevator model portfolio
The main technical parameters:
1, and its dimensions: 800 (L) x 600 (W) x 800 (H)
2, net weight:
3, Controller Model: Mitsubishi FX1N-60 PLC controller (60 points) and 8 output point spread modules
4, drive motor: DC: 12V slowdown Motor
Mitsubishi FX1N-60 five-story elevator model portfolio Training
The main technical parameters:
1, and its dimensions: 800 (L) x 600 (W) x 800 (H)
2, net weight:
3, Controller Model: Mitsubishi FX1N-60 PLC controller (60 points)
4, drive motor: DC: 12V slowdown Motor
